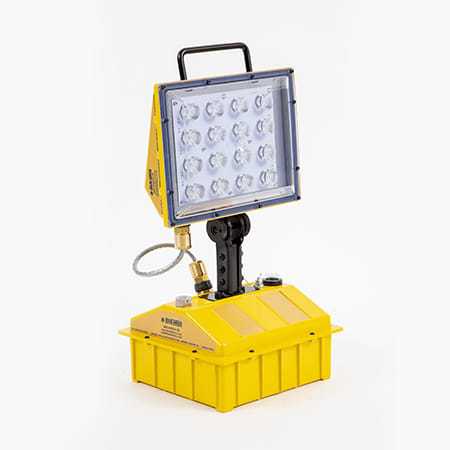

GUARDIAN ZONE 1 LED
Zone I Portable LED Light
TECHNICAL INFORMATION
Area of Use:
Zones I and II (Gas); Zones 21 and 22 (Dust)
EX Marking (Gas):
EX II 2G Ex eb ib mb IIC T4 Gb
Ex Marking (Dust):
EX II 2D Ex ib mb tb IIIC T135°C Db
ATEX Certificate:
ITS20ATEX305465X
IECEx Certificate:
IECEx ITS 20.0008X
Protection Concepts:
eb – Increased Safety;
ib – Intrinsic Safety;
mb – Encapsulation;
tb – Dust-tight Enclosures
ib – Intrinsic Safety;
mb – Encapsulation;
tb – Dust-tight Enclosures
Light Output:
3000 Lumens at Source
Light Source:
16x LEDs
Light Duration:
Up to 16 Hours
Light Source Service Life:
100,000 hours
Flood Angle:
20°(Customisable upon Request)
Battery Type:
Valve Regulated Absorbent Glass Mat Sealed Lead Acid
Battery Capacity:
18Ah
Battery Voltage:
12V
Battery Life:
Up to 1200 Recharge Cycles
Charger Supply:
100Vac to 264Vac at 50/60 Hz at 0.7A
Recharge Rate:
1.3Ah per Hour
Ingress Protection:
IP66/67 (IEC 60529)
Operating Temperature Range:
-20°C to +40°C
Weight:
9kg
Dimensions:
263mm x 242mm x 565mm
NSN Code:
6230-99-847-1594
