High & Ultra High Pressure Plunger Pumps

Precision Engineering for Demanding Applications

Our range of high and ultra-high pressure plunger pumps is engineered to perform in the most demanding industrial, offshore, and surface preparation environments.

Operating at pressures from 70 to 2,800 bar (1,000 to 40,000 psi) and flow rates up to 800 l/min (214 gpm), with power ratings from 30 to 375 kW (40 to 500 hp), these pumps deliver outstanding reliability, performance, and service life.

Every pump undergoes a three-hour endurance and performance test, during which critical functions are monitored, recorded, and verified to meet exacting standards.

Our pumps are manufactured in-house in West Sussex, United Kingdom, where they produce key components — including crankshafts and gearboxes — using state-of-the-art CNC machinery, machine-tending robots, and advanced inspection systems to guarantee precision and consistency.

Key Features

431 stainless steel pumpheads
Solid tungsten carbide or ceramic plungers with self-adjusting seals
In-line valve arrangement for maximum efficiency and reduced cyclic stress
Interchangeable plunger kits for simplified maintenance

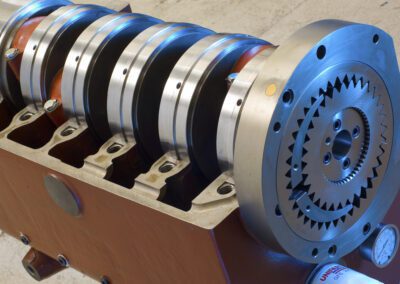

Hardened alloy steel crankshafts with heavy-duty roller and steel-backed white metal main bearings
SG iron crankcases with pressure lubrication, oil filtration, and oil cooling
Forged connecting rods with low-friction, shell-type big-end bearings and lead-bronze lined small ends
Direct gear drive system — eliminating belt drive requirements
Integrated pressure gauge and safety valve or burst disc
Exceptional seal, plunger, and valve life

Available Options

316 or Duplex stainless steel pumpheads for seawater and corrosive applications
Choice of gear ratios to suit diesel or electric motor drives
SAE adaptor housings for compact, flange-mounted diesel engine installations
ATEX-compliant configurations available

High Pressure Plunger Pump Range

Model	Maximum Power	Maximum Pressure	Maximum Flowrate
HP40	40 HP / 30 kW	1,000 bar (14,500 psi) @ 16 l/min	103 l/min (27.2 gpm) @ 160 bar
HP65	65 HP / 48 kW	1,000 bar (14,500 psi) @ 27 l/min	103 l/min (27.2 gpm) @ 250 bar
HP120	120 HP / 90 kW	1,400 bar (20,300 psi) @ 35 l/min	277 l/min (73.4 gpm) @ 175 bar
HP220	220 HP / 160 kW	1,400 bar (20,300 psi) @ 62 l/min	277 l/min (73.4 gpm) @ 310 bar
HP300	300 HP / 225 kW	1,400 bar (20,300 psi) @ 77 l/min	484 l/min (128.2 gpm) @ 250 bar
HP500	500 HP / 375 kW	1,400 bar (20,300 psi) @ 129 l/min	806 l/min (213.7 gpm) @ 250 bar
